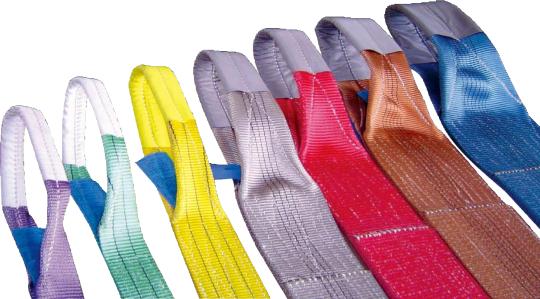

1. SYNTHETIC WEB SLINGS 扁平吊装带
Stock No | Color | WLL(t) | Width (mm) | Soft Eye (mm) | Weight kg/m |
W01-01 | Purple |
| 1 | 25 | 350 | 0.2 |
W01-02 | Green |
| 2 | 50 | 400 | 0.41 |
W01-03 | Yellow |
| 3 | 75 | 450 | 0.6 |
W01-04 | Gray |
| 4 | 100 | 500 | 0.75 |
W01-05 | Red |
| 5 | 125 | 550 | 1.02 |
W01-06 | Brown |
| 6 | 150 | 600 | 1.26 |
W01-08 | Blue |
| 8 | 200 | 700 | 1.69 |
W01-10 | Orange |
| 10 | 250 | 800 | 2.07 |
W01-12 | Orange |
| 12 | 300 | 900 | 2.37 |
2. Synthetic Web Slings Endless Type 扁平环形吊带
| Stock No | WLL(t) | Web Width (mm) | Rated Capacity(t) |
Vertical | Choke | V.Basket |
M=1 | M=0.8 | M=2 |
1-Ply | EN01-1T | 1 | 30 | 1 | 0.8 | 2 |
EN01-2T | 2 | 50 | 2 | 1.6 | 4 |
EN01-3T | 3 | 75 | 3 | 2.4 | 6 |
EN01-4T | 4 | 100 | 4 | 3.2 | 8 |
EN01-5T | 5 | 125 | 5 | 4 | 10 |
EN01-6T | 6 | 150 | 6 | 4.8 | 12 |
EN01-8T | 8 | 200 | 8 | 6.4 | 16 |
EN01-10T | 10 | 250 | 10 | 8 | 20 |
2-Ply | EN02-2T | 2 | 30 | 2 | 1.6 | 4 |
EN02-4T | 4 | 50 | 4 | 3.2 | 8 |
EN02-6T | 6 | 75 | 6 | 4.8 | 12 |
EN02-8T | 8 | 100 | 8 | 6.4 | 16 |
EN02-10T | 10 | 125 | 10 | 8 | 20 |
EN02-12T | 12 | 150 | 12 | 9.6 | 24 |
EN02-16T | 16 | 200 | 16 | 12.8 | 32 |
EN02-20T | 20 | 250 | 20 | 16 | 40 |
EN02-24T | 24 | 300 | 24 | 19.2 | 48 |
*Do not exceed rated capacities. Sling tension increases as the angle from horizontal decreases. Slings should not be used at angles of less than 30°.
3. Synthetic Round Slings 环形柔性吊带
Stock No. | color | Rated Capacity(t) |
Vertical | Choker | Basket at 90 | Basket at 45 |
|
M＝1 | M＝0.8 | M＝2 | M＝1.4 |
EE7010 | Purple |
| 1 | 1 | 2 | 1 |
EE7020 | Green |
| 2 | 2 | 4 | 3 |
EE7030 | Yellow |
| 3 | 2 | 6 | 4 |
EE7040 | Tan |
| 4 | 3 | 8 | 6 |
EE7050 | Red |
| 5 | 4 | 10 | 7 |
EE7060 | White |
| 6 | 5 | 12 | 8 |
EE7080 | Blue |
| 8 | 6 | 16 | 11 |
EE7100 | Orange |
| 10 | 8 | 20 | 14 |
EE7120 | Orange |
| 12 | 10 | 24 | 17 |
EE7150 | Orange |
| 15 | 12 | 30 | 21 |
EE7200 | Orange |
| 20 | 16 | 40 | 28 |
EE7300 | Orange |
| 30 | 24 | 60 | 42 |
Edges do not need to be sharp to cause failure of the sling.
